| Property | Value |
|---|---|
| Body Material - Pin and Sleeve | Polyester |
| Amps - Plugs and Receptacles | 100 A |
| Voltage | 480V AC |
| Color - Plugs and Receptacles | Blue |
| Use With | Mating Box MB6 |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| NEMA Rating | 3R |
| HP | 50 |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Impact Rating | IK08 |
| Load Break Amp Rating | 100A |
| Wire Strip Length | Phase: 15/16 in (24 mm) |
| Terminal Type | Screw terminal |
| Wire Size | 10 AWG to 2 AWG |
| Color Code | Red |
| Short Circuit Current Rating | 100 KA - MAKE u0026 WITHSTAND |
| Wire Temperature Rating | 60 Degrees C |
| Operating Temp. Range | -40C to 60C |
| Keying Position | 24 |
| Hz | 60 Hz |
| IP Rating | IP55 |
| Number of Notch Positions | 24 |
| Number of Aux. Outputs | NO AUX |
| Use With Installation Accessory Size | 4 |
| Contact Configuration | 3P+G |
| Load Break Amp Rating_Abnormal Overload | 150A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

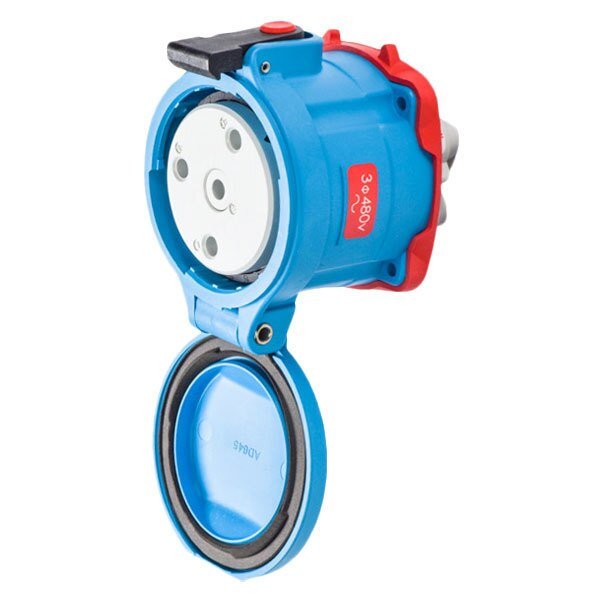

33-64243-C-K04-NC RECEPTACLE NORMALLY CLOSED LID, Meltric, Mfr#: 33-64243-C-K04-NC
$800.99
Free shipping will be applied on orders over $50

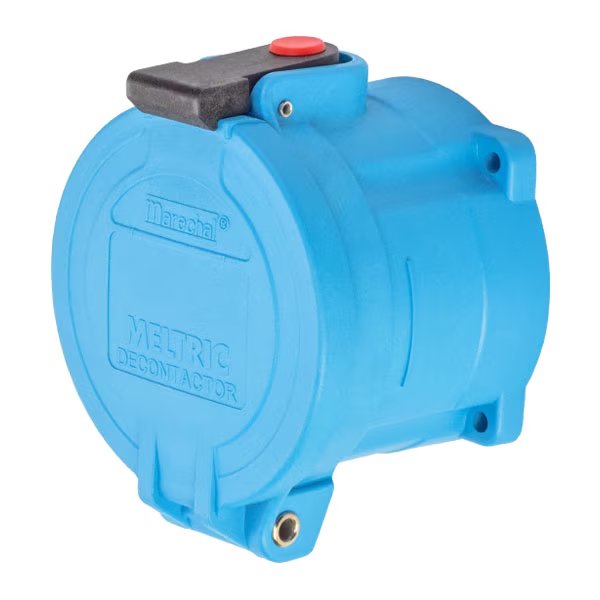

DS100C RECEPTACLE POLY BLUE SIZE 4 TYPE 3R 3P+G 100A 480 VAC 60 Hz NO AUX NORMALLY CLOSED LID
Out of stock
