| Property | Value |
|---|---|
| Body Material - Pin and Sleeve | Polyester |
| Voltage | 480V AC |
| Amps - Plugs and Receptacles | 20 A |
| Color - Plugs and Receptacles | Blue |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508 |
| HP | 7.5 |
| NEMA Rating | 3R |
| Use With | Mating Box MB3 |
| Keying Position | 4 |
| IP Rating | IP55 |
| Operating Temp. Range | -40C to 60C |
| Impact Rating | IK08 |
| Wire Strip Length | Auxiliary: 1/2 in (13 mm); Phase: 7/16 in (11 mm) |
| Terminal Type | Screw terminal |
| Auxiliary Contact Rating | 1.2A |
| Hz | 60 Hz |
| Short Circuit Current Rating | 100 KA - MAKE u0026 WITHSTAND |
| Number of Aux. Outputs | +2 AUX |
| Terminal Connection | Screw |
| Auxiliary Contact Voltage Rating | 600VAC |
| Wire Size | 14 AWG; 14 AWG to 8 AWG |
| Contact Configuration | 3P+G |
| Wire Temperature Rating | 60 Degrees C |
| Tightening Torque | Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M |
| Color Code | Red |
| Number of Notch Positions | 24 |
| Load Break Amp Rating | 20A |
| Use With Installation Accessory Size | 2 |
| Load Break Amp Rating_Abnormal Overload | 30A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
33-14043-972-NC RECEPTACLE NORMALLY CLOSED LID, Meltric, Mfr#: 33-14043-972-NC
$397.99
Free shipping will be applied on orders over $50

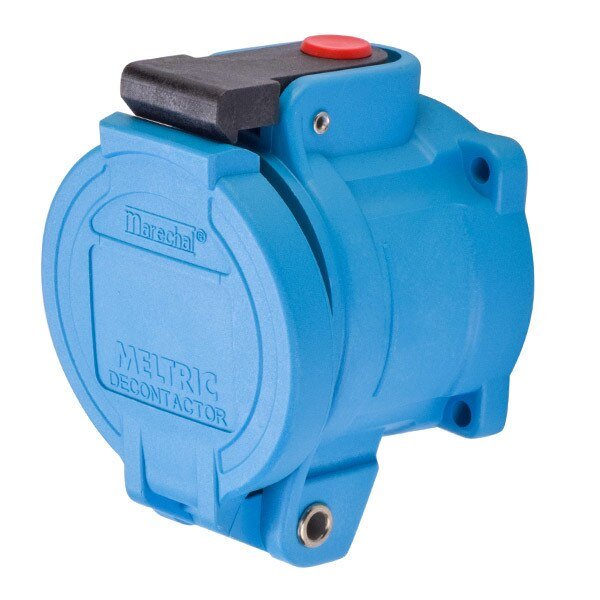

DS20 RECEPTACLE POLY BLUE SIZE 2 TYPE 3R 3P+G 20A 480 VAC 60 Hz +2 AUX NORMALLY CLOSED LID
Out of stock
