| Property | Value |
|---|---|
| Item | Housing |
| Number of Rows | 2 |
| Application | Power, Signal |
| Width | 0.937 in |
| Standards | CSA Certified; UL E28476; UL Recognized |
| Features | Circuit Identification Feature; With Multiple Contact Types |
| Material | Nylon |
| Length | 39 mm |
| Color | White |
| Height | 9.6 mm |
| Wire Type | Discrete |
| Max. Voltage | 600V AC |
| Flammability Rating | UL 94 V-0 |
| Terminal Type | Crimp |
| Max. Temp. | 105°C |
| Max. Insulation Dia. | 0.122 in |
| Number of Contacts | 18 |
| Contact Type | Pin |
| Hole Center to Center | 4.2 mm |
| Connector Terminates To | Wire u0026 Cable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

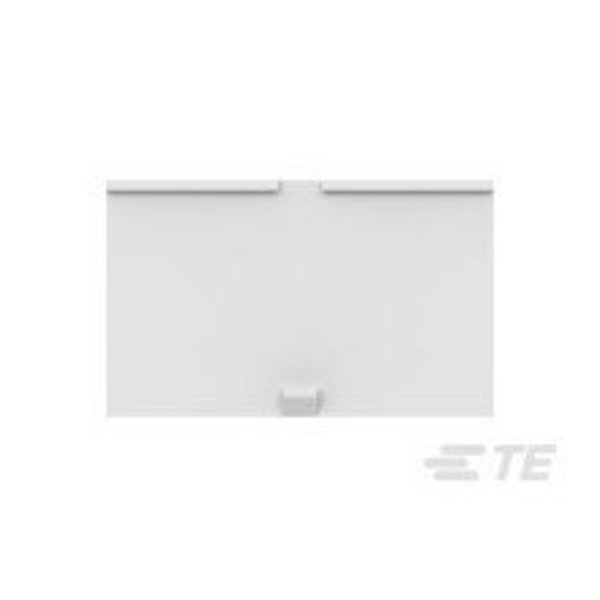

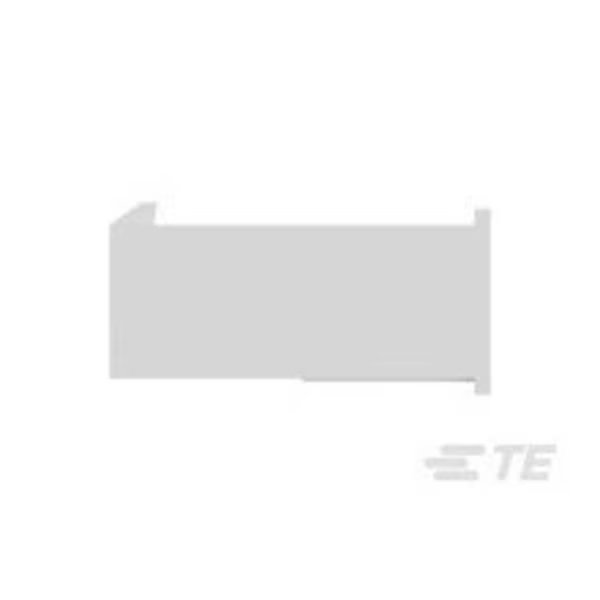

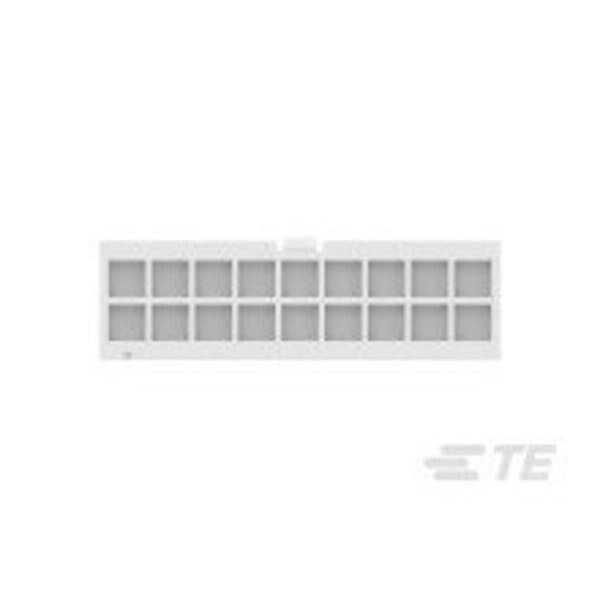

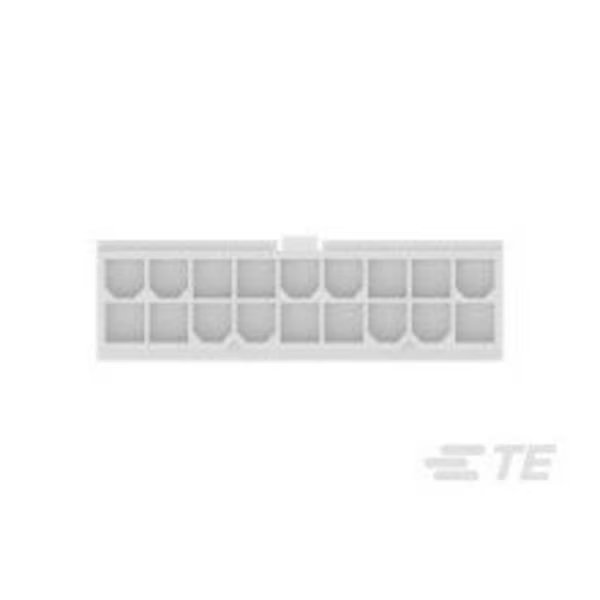

18P FH PLUG VAL-U-LOK V0, Te Connectivity, Mfr#: 1-1586017-8
$0.4
Free shipping will be applied on orders over $50
Out of stock
