| Property | Value |
|---|---|
| Item | Magnetic Contactor |
| Full Load Amps | 45 A |
| Action | Non-Reversing |
| Number of Poles | 3 |
| NEMA Contactor Size | 2 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Height | 4.8 in |
| HP @ 3 Phase - 208V | 10 hp |
| Width | 2.17 in |
| HP @ 3 Phase - 575V | 25 hp |
| HP @ 3 Phase - 240V | 15 hp |
| Depth | 4.72 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 25 hp |
| NEMA Size | 2 |
| Frame / Series / Class / Code | TeSys |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO/1NC |
| Standards | CSA, UL Listed |
| Series | TeSys N |
| Nema Degree Of Protection | not rated (open device) |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Product Certifications | UL Listed || CSA |
| Poles Description | 3P |
| Control Circuit | common control circuit |
| Line Rated Current | 45 A |
| Maximum Horse Power Rating | 10 hp 200 V AC || 15 hp 230 V AC || 25 hp 460 V AC || 25 hp 575 V AC |
| Electrical Connection | screw clamp terminals |
| Contactor Application | non-reversing |
| [Ue] Rated Operational Voltage | 600 V AC |
| Phase | Three |
| [Uc] Control Circuit Voltage | 120 V AC |
| Product Or Component Type | contactor |
| Horsepower @ Single Phase - 240V AC | 7 1/2 hp |
| Frequency | 50/60 Hz |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Depth | 4.72 in |
| Horsepower @ Three Phase - 600V AC | 25 hp |
| Full Load Current - Inductive | 45 A |
| Number of Auxillary Contacts | 2 |
| NEMA Enclosure Rating | No Enclosure |
| Overall Width | 2.16 in |
| Contactor Style | NEMA |
| Includes Auxiliary Contacts | Yes |
| Reversing Capability | Non-Reversing |
| Maximum Voltage Rating | 600V AC |
| Horsepower @ Single Phase - 120V AC | 3 hp |
| NEMA Enclosure Material | Not Applicable |
| Overall Height | 5.47 in |
| Horsepower @ Three Phase - 208V AC | 10 hp |
| Embedded Surge Suppressor | No |
| Horsepower @ Three Phase - 480V AC | 25 hp |
| Horsepower @ Three Phase - 240V AC | 15 hp |
| Coil Voltage | 120V AC |
| Country of Origin (subject to change) | France |
| Package Quantity | 1 |

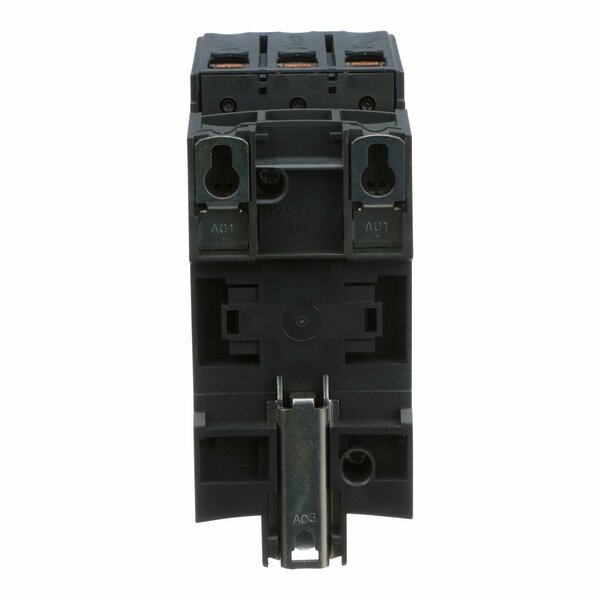

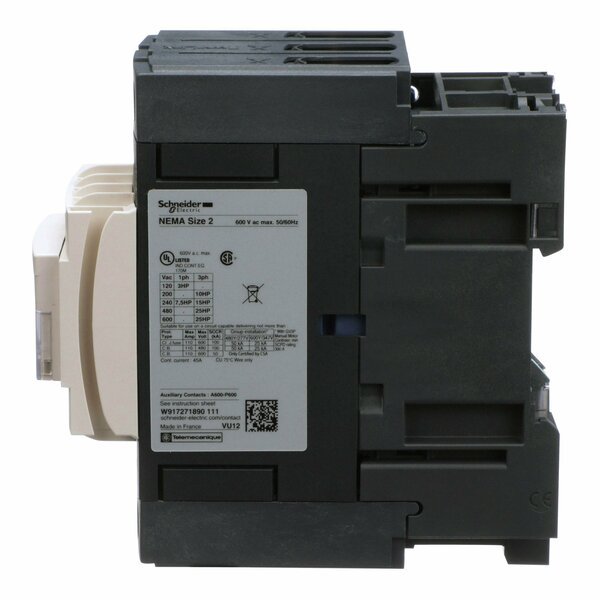

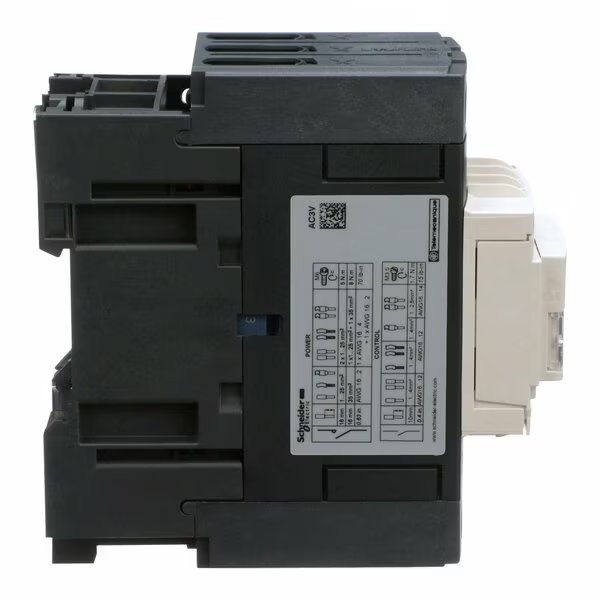

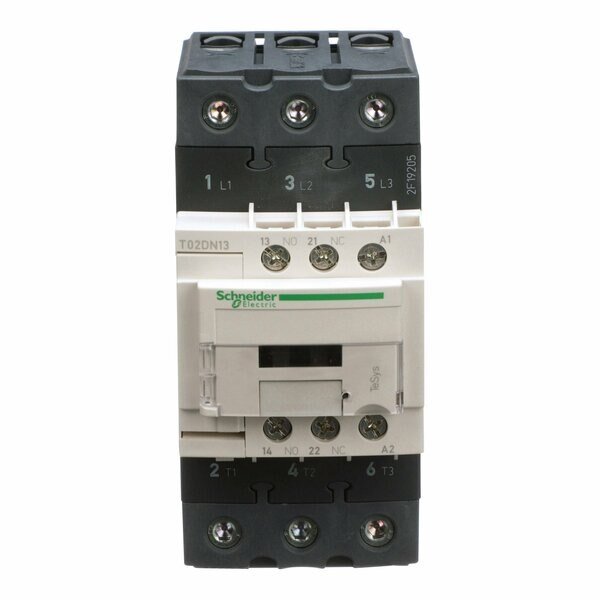

120VAC Non-Reversing Magnetic Contactor 3P 45A NEMA 2, SCHNEIDER ELECTRIC, Mfr# T02DN13G7
$502.99
Free shipping will be applied on orders over $50
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size 2, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 45 A, Reversing Capability Non-Reversing, Overall Height 5.47 in, Overall Width 2.16 in, Terminal Connection Type Screw Clamp Terminals, Series TeSys N, Number of Auxillary Contacts 2, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 25 hp, Phase Three
