1-1/4 in. Steel Ball Bearing Sliding Door Nylon Roller Assembly, for North Single Pack, Prime-Line, Mfr#: D 1733

$7.19

Free shipping will be applied on orders over $50

This is a F-tab patio door roller assembly with a 1-1/4 in. concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 11/16 in. wide and 1-3/16 in. tall with a dimple width of 7/8 in. . Used by Northrup and a variety of other sliding patio door manufacturers.

  • Used by Northrup and a variety of sliding patio door manufacturers
  • When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
  • 1-1/4 in. diameter concave ball bearing roller
  • Stamped steel housing and nylon roller
  • Used on metal framed sliding patio doors
  • Easy to install
  • A Phillips head screwdriver is required for installation

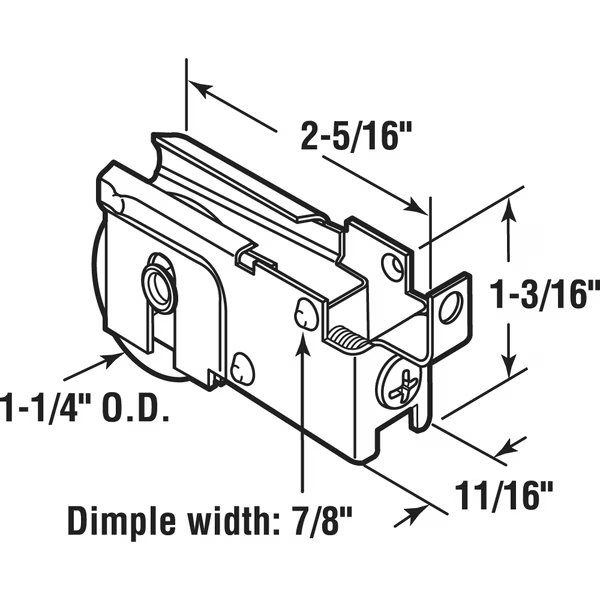

  • For further dimensional information, please see the line drawing

    • Out of stock

    Brand Name: Prime-Line
    Mfr #: D 1733
    Availability: Ships in 2 days
    SKU: GRG200935611
    UPC: 49793017338
    Category:

    Analogues

    PropertyValue
    FinishYellow Zinc
    Country of Origin (subject to change)China
    Package Quantity1
