| Property | Value |
|---|---|
| Item | Connector |
| Number of Rows | 2 |
| Material | Thermoplastic |
| Length | 17.27 mm |
| Standards | CSA Certified; UL E28476; UL Recognized |
| Height | 15.16 mm |
| Application | Signal |
| Width | 0.2949 in |
| Color | Black |
| Hole Center to Center | 2.54 mm |
| Max. Voltage | 250V AC |
| Connector Terminates To | Wire u0026 Cable |
| Terminal Type | Through Hole - Solder; Insulation Displacement Crimp |
| Min. Single Wire Size | 28 AWG |
| Contact Plating Thickness | 0.38 µm |
| Max. Insulation Dia. | 0.037 in |
| Terminal Finish | Tin Plated |
| Connection Material | Phosphor Bronze |
| Number of Contacts | 10 |
| Flammability Rating | UL 94 V-0 |
| Max. Single Wire Size | 26 AWG |
| Contact Type | Socket |
| Current Rating | 1 A |
| Max. Temp. | 105°C |
| Connector Type | Receptacle |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

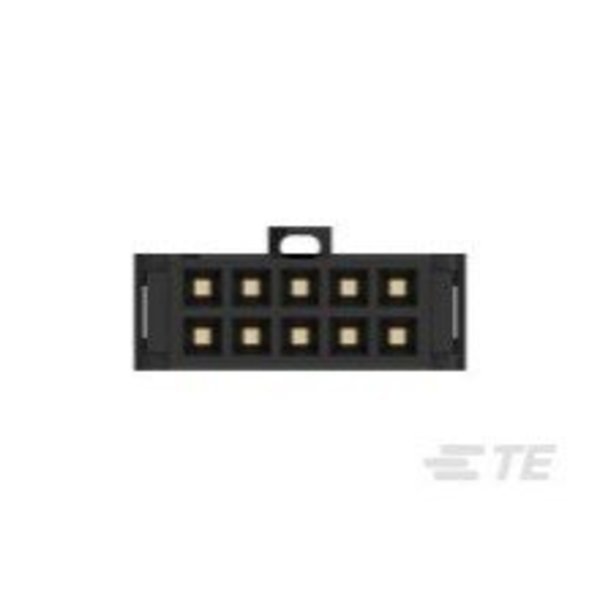

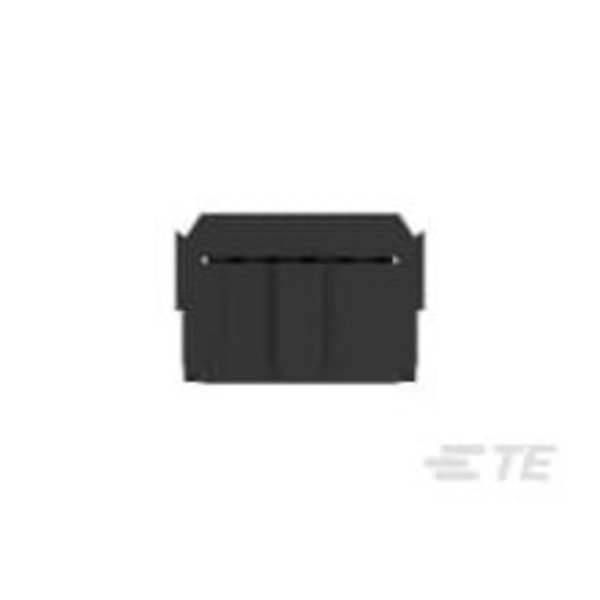

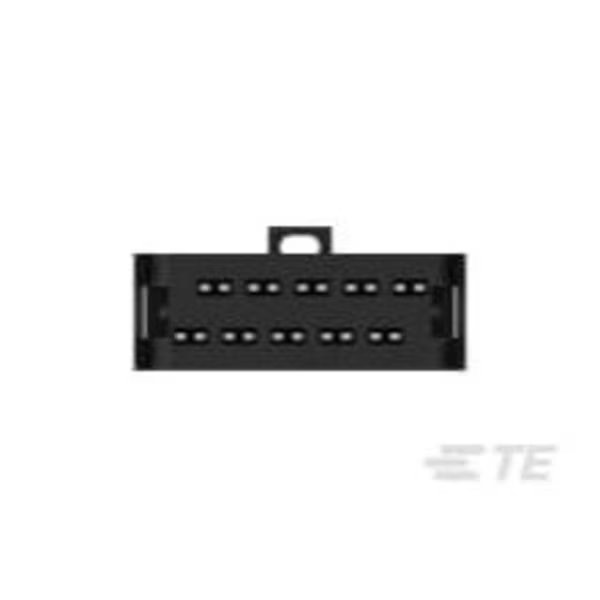

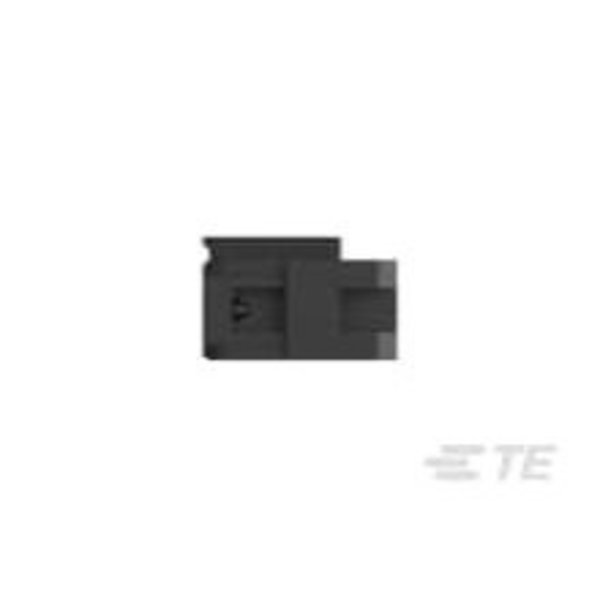

10 NOVO MIL/CTR 15DP LEAD FREE, Te Connectivity, Mfr#: 1658621-1
$1.55
Free shipping will be applied on orders over $50
Out of stock
