| Property | Value |
|---|---|
| Wire Range | 0.12 to 0.15 mm² |
| Insulation Color | Blue |
| Features | Strain Relief |
| Max. Voltage | 250V AC |
| Connection Material | Copper Alloy |
| Max. Temp. | 221 Degrees F |
| Item | Connector |
| Standards | UL, CSA Listed |
| Overall Length | 0.6 in |
| Connection Type | Locking Lance, Insulation Displacement Crimp (IDC) |
| Terminal Type | Closed End Plug |
| Wire Type | Discrete Wire, Stranded |
| Application | Signal, Wire and Cable, Power |
| Mounting Type | Cable Mount |
| Contact Plating Material | Nickel |
| Terminal Orientation | 90 ° |
| Insulation Dia | 0.06 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

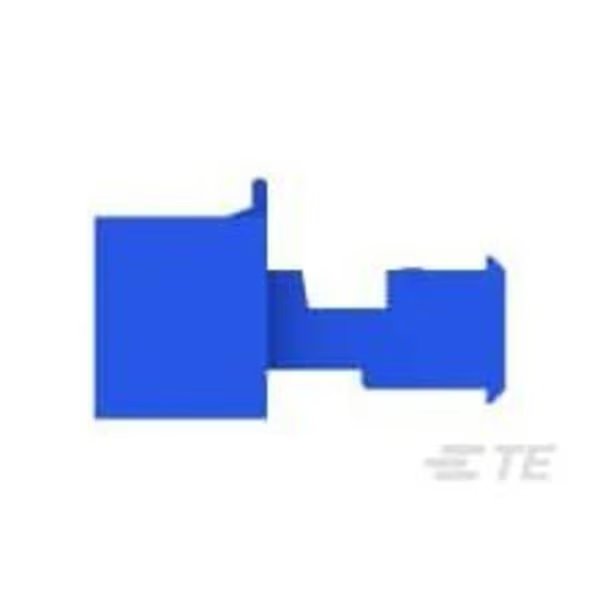

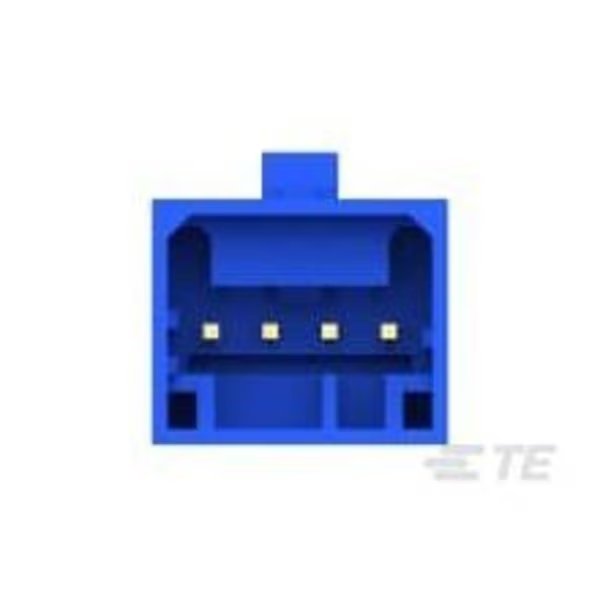

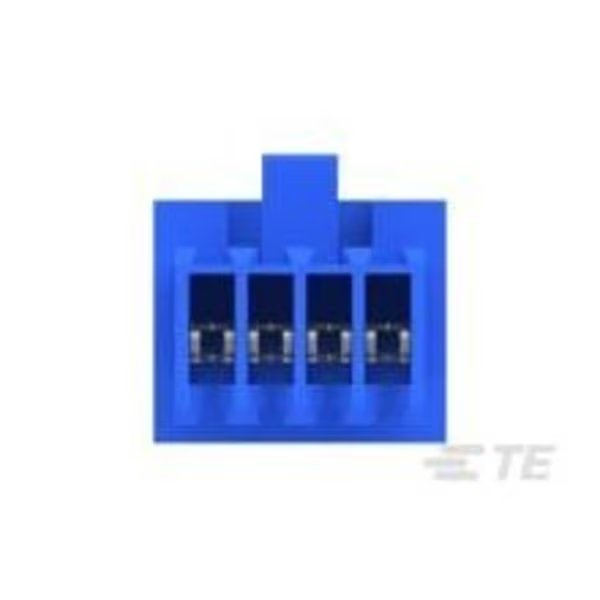

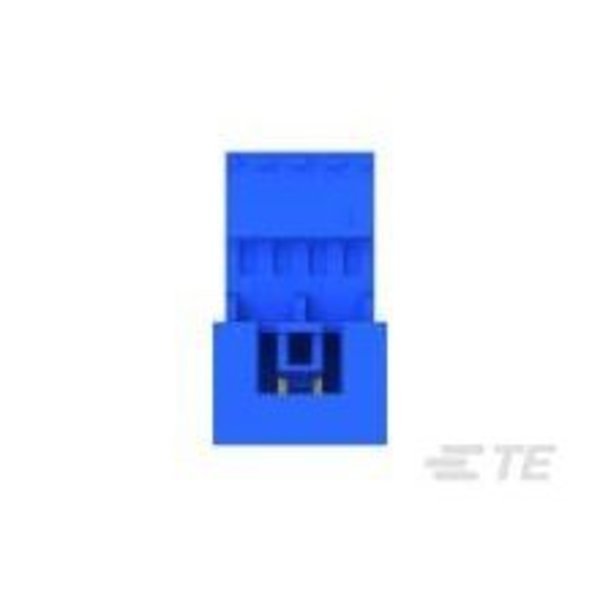

04P MTA100 PSTD CONN ASSY LF, Te Connectivity, Mfr#: 3-647010-4
$0.87
Free shipping will be applied on orders over $50
Out of stock
