| Property | Value |
|---|---|
| Color | White |
| Max. Voltage | 600V AC/DC |
| Height | 13.49 mm |
| Width | 9.83 mm |
| Application | Power |
| Length | 9.83 mm |
| Terminal Type | Through Hole - Solder |
| Item | Header |
| Max. Temp. | 105°C |
| Standards | CSA Certified; UL E28476; UL Recognized |
| Hole Center to Center | 4.14 mm |
| Material | Nylon |
| For Use With | Plug Housing |
| Current Rating | 9.5 A |
| Number of Contacts | 4 |
| Contact Type | Pin |
| Contact Finish | Gold Plated |
| Number of Rows | 2 |
| Contact Plating Thickness | 0.76 µm |
| Flammability Rating | UL 94 V-0 |
| Connector Terminates To | Printed Circuit Board |
| Terminal Finish | Tin Plated |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

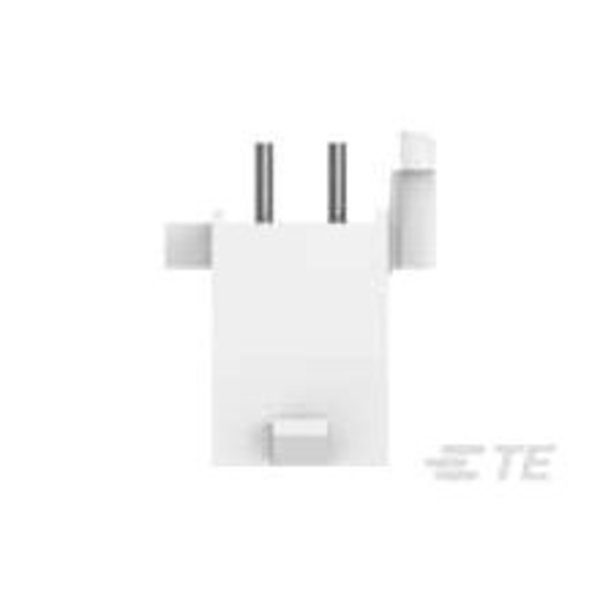

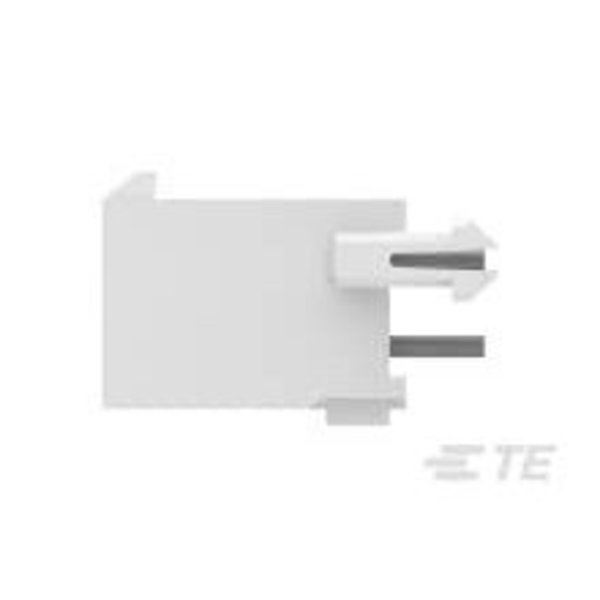

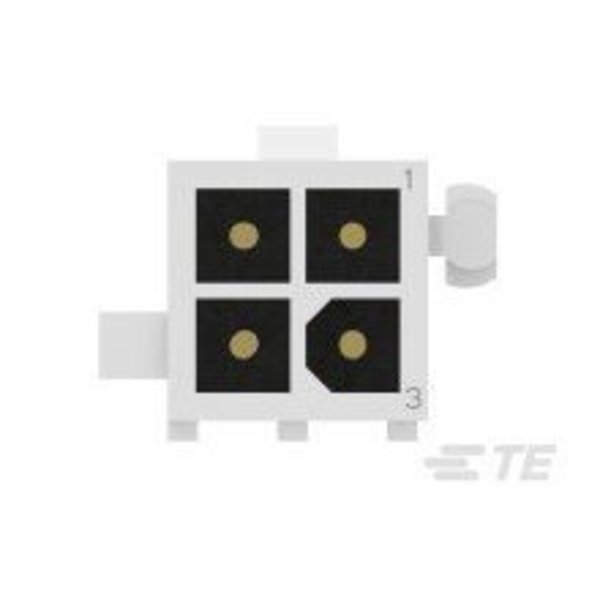

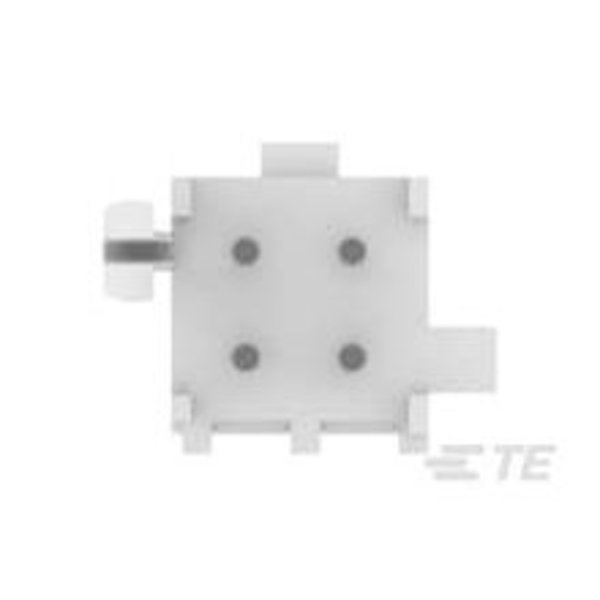

04P MINI UMNL HDR ASSY AU LF, Te Connectivity, Mfr#: 1-770874-1
$2.89
Free shipping will be applied on orders over $50
Out of stock
