| Property | Value |
|---|---|
| Color | Black |
| Max. Voltage | 250V AC/DC |
| Height | 11.92 mm |
| Width | 10.88 mm |
| Application | Power |
| Length | 7 mm |
| Material | High Temperature Nylon |
| Max. Temp. | 105°C |
| Hole Center to Center | 3 mm |
| Standards | CSA Certified; UL E28476; UL Recognized |
| Item | Header |
| Terminal Type | Through Hole - Solder |
| Max. Insulation Dia. | 0.06 in |
| Current Rating | 5 A |
| Contact Finish | Tin Plated |
| Number of Rows | 2 |
| Contact Type | Pin |
| Number of Contacts | 2 |
| Terminal Finish | Matte Tin Plated |
| Flammability Rating | UL 94 V-0 |
| Contact Plating Thickness | 2.54 to 7.62 µm |
| Connector Terminates To | Printed Circuit Board |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

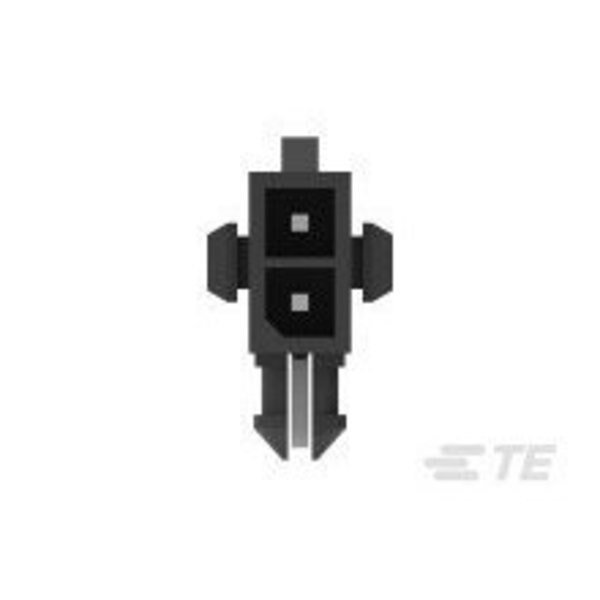

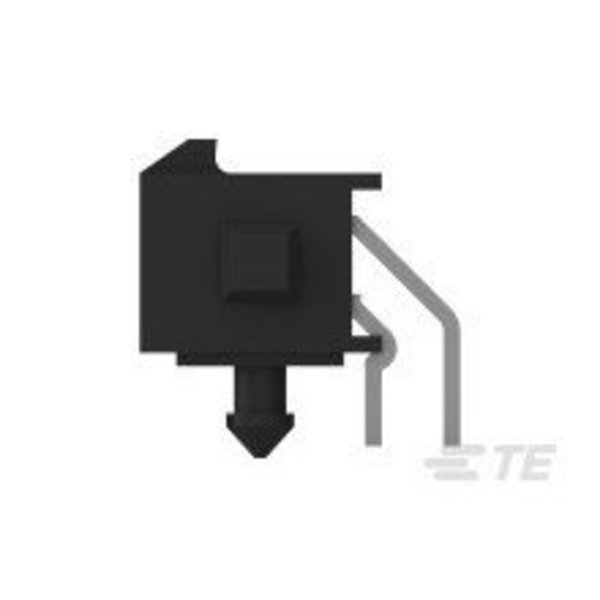

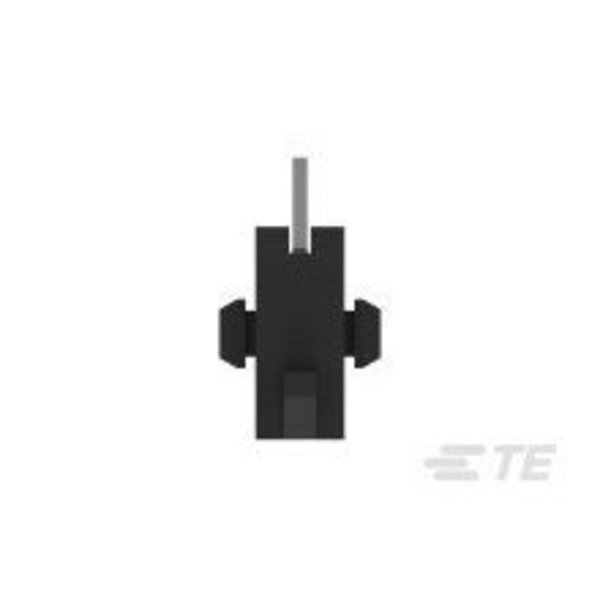

02P MICRO MNL ASSY R/A HDR LF, Te Connectivity, Mfr#: 3-794618-2
$0.79
Free shipping will be applied on orders over $50
Out of stock
